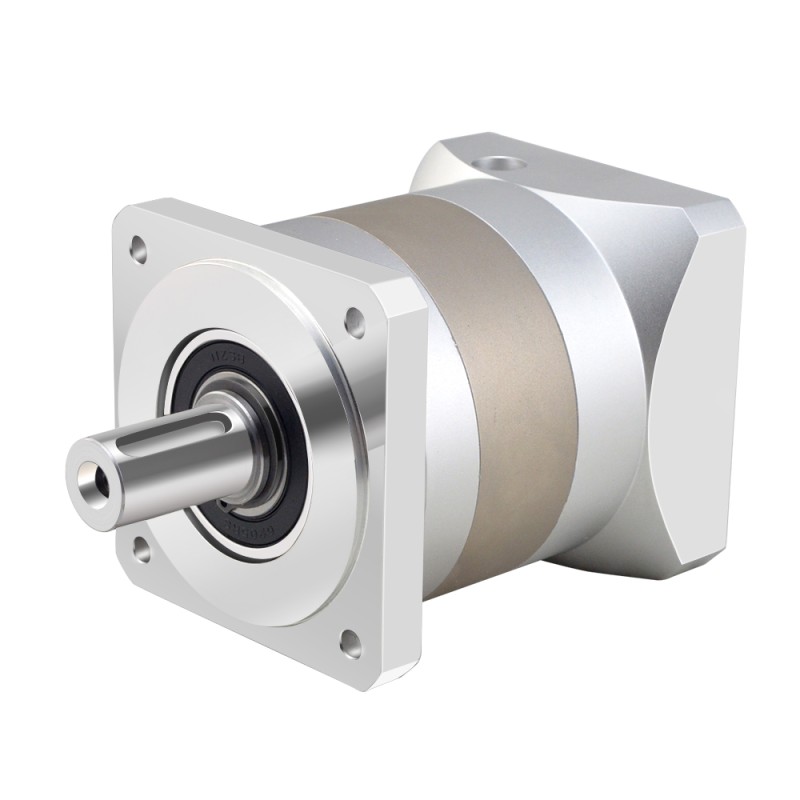

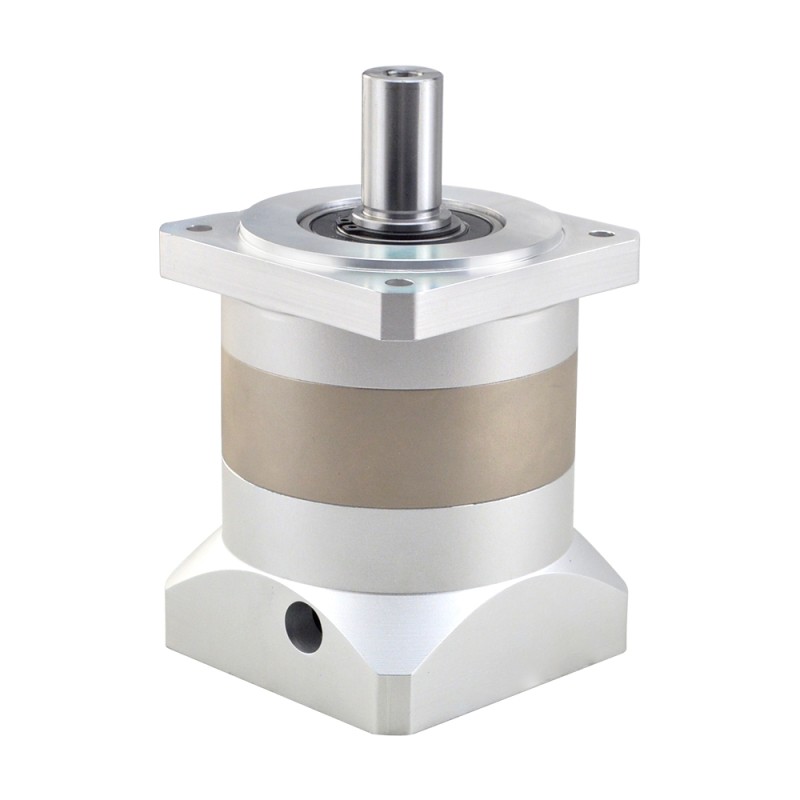

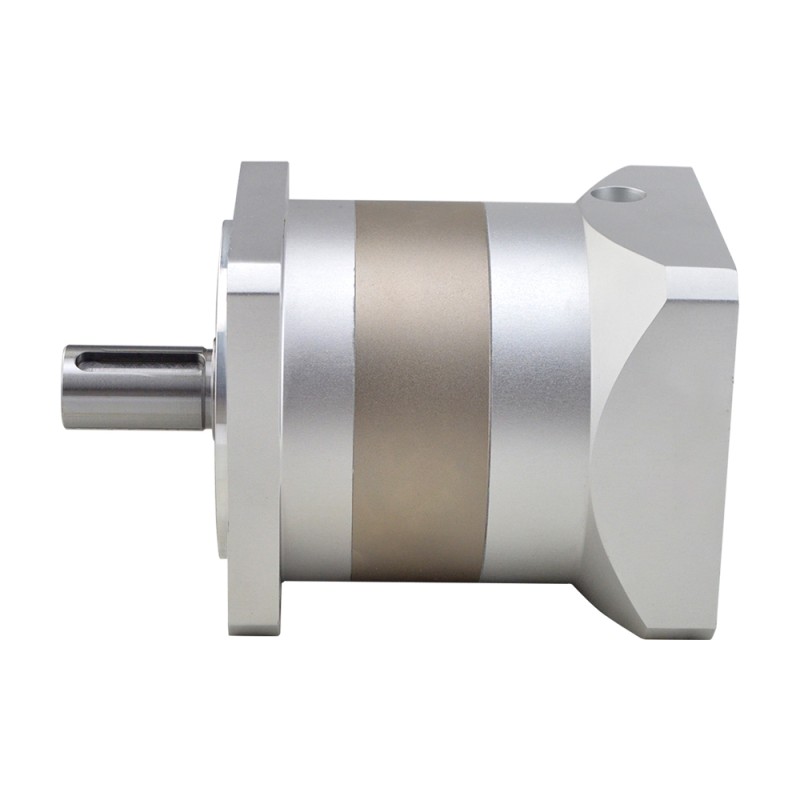

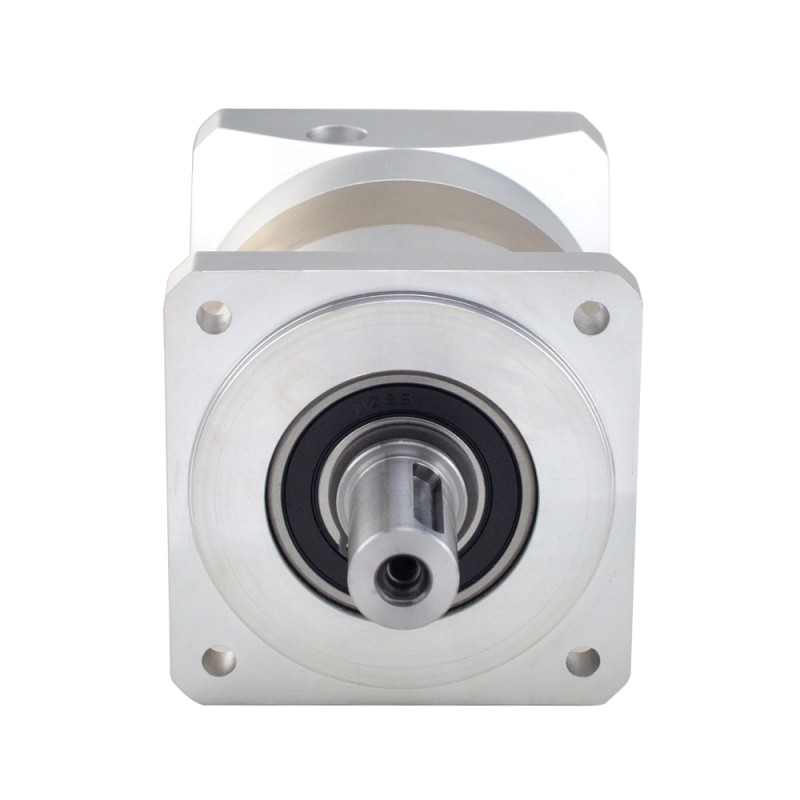

EG Series Planetary Gearbox Gear Ratio 10:1 Backlash 15arc-min for Nema 34 Stepper Motor
from
$77.55
10 or more $71.41
100 or more $66.16
- Model: EG34-G10
- Weight: 3.00kg

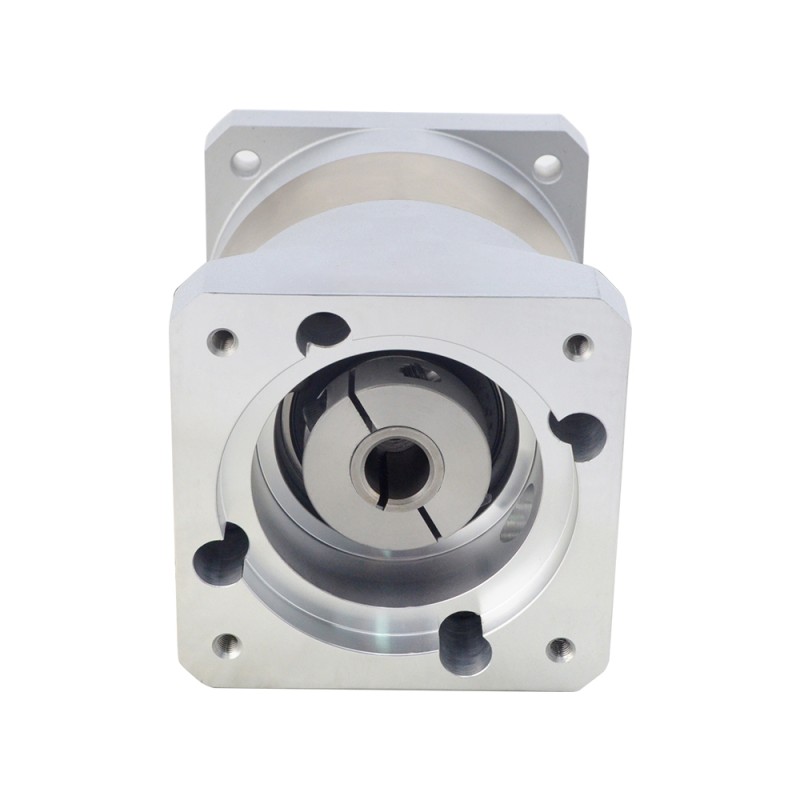

The size of this gearbox is 90 x 90mm and the input shaft diameter is 14mm. This high-precision planetary gearbox is belong to EG series gearbox, it with gear ratio 10:1 and a maximum 15arc-min backlash. It's an excellent choice for applications that require good accuracy and reliability at an exceptional value. This inline planetary gearbox built-in an input shaft coupling which can match any standard Nema 34 stepper motor and brushless dc motor.
Gearbox Specifications
- Part Number: EG34-G10
- Gearbox Type: Spur Planetary
- Gear Material: Alloy Steel
- Gear Ratio: 10:1
- Efficiency: 96%
- Rotor Inertia: 0.44kg·cm²
- Backlash at No-load: <=15arcmin
- Max.Permissible Torque: 39Nm(345.18lb-in)
- Moment Permissible Torque: 78Nm(690.36lb-in)
- Noise: <=55dB(1000rpm)/65dB(3000rpm)
- Waterproof Rating: IP54
- Lifetime: 20000hours
Physical Specifications
- Frame Size: 90 x 90mm
- Gearbox Length: 110mm
- Output Shaft Type: Key way
- Output Shaft Diameter: Φ20mm
- Output Shaft Length: 40mm
- Input Shaft Diameter: Φ14mm
- Input Shaft Length: 22-41mm
The diameter of the new version is fixed at 14mm. The diameter of the old version is 19mm and can be converted to 14mm by adding a shaft sleeve. New and old version shipped randomly.
