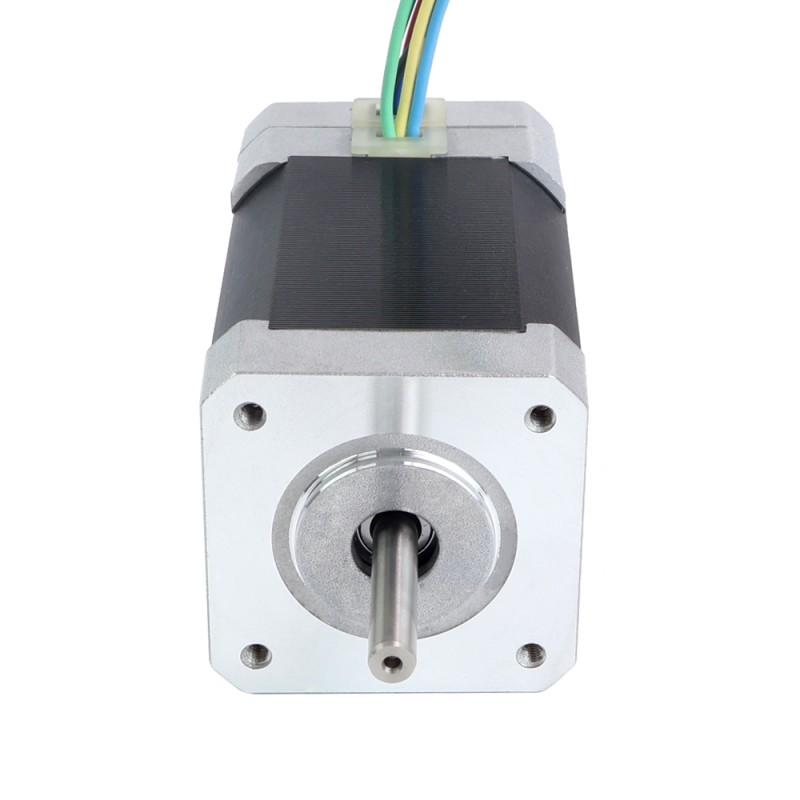

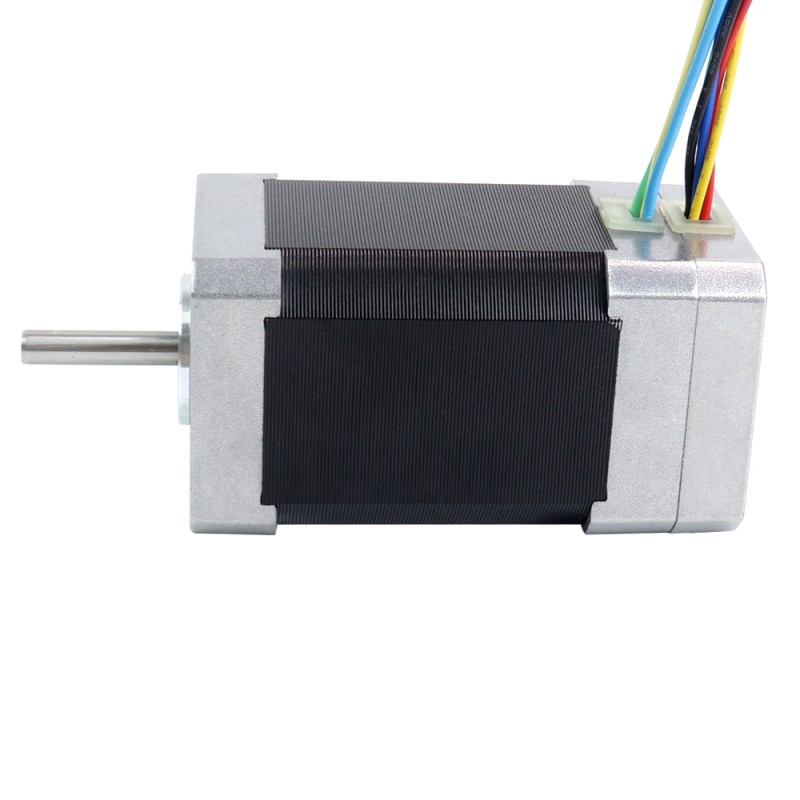

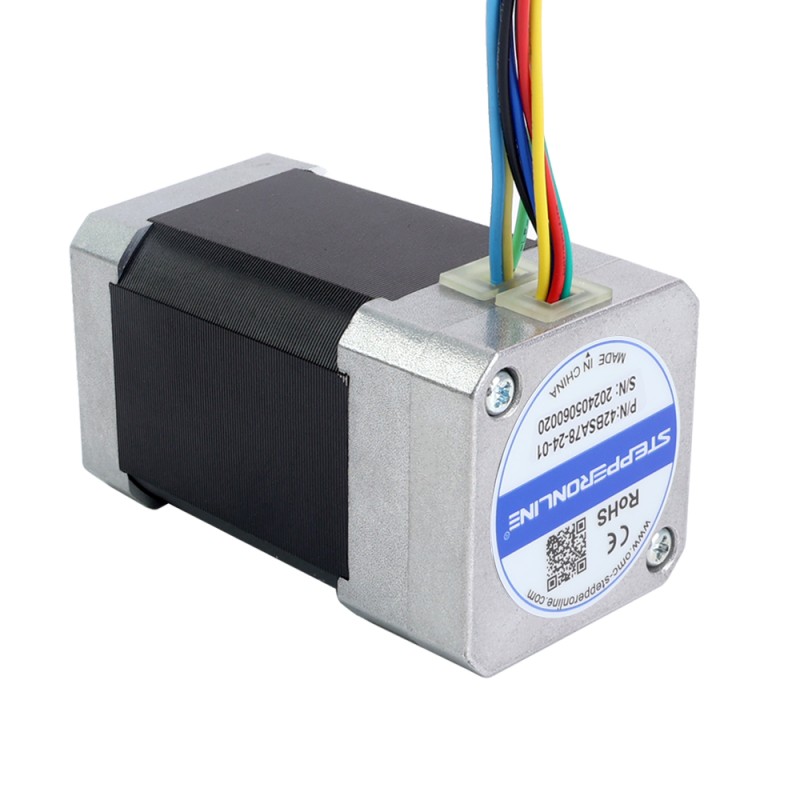

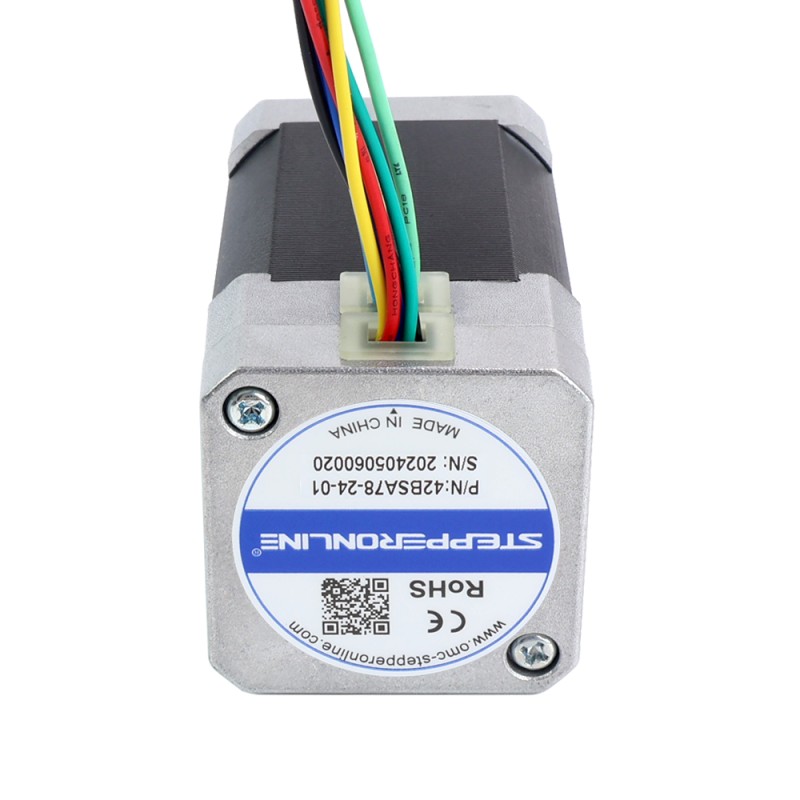

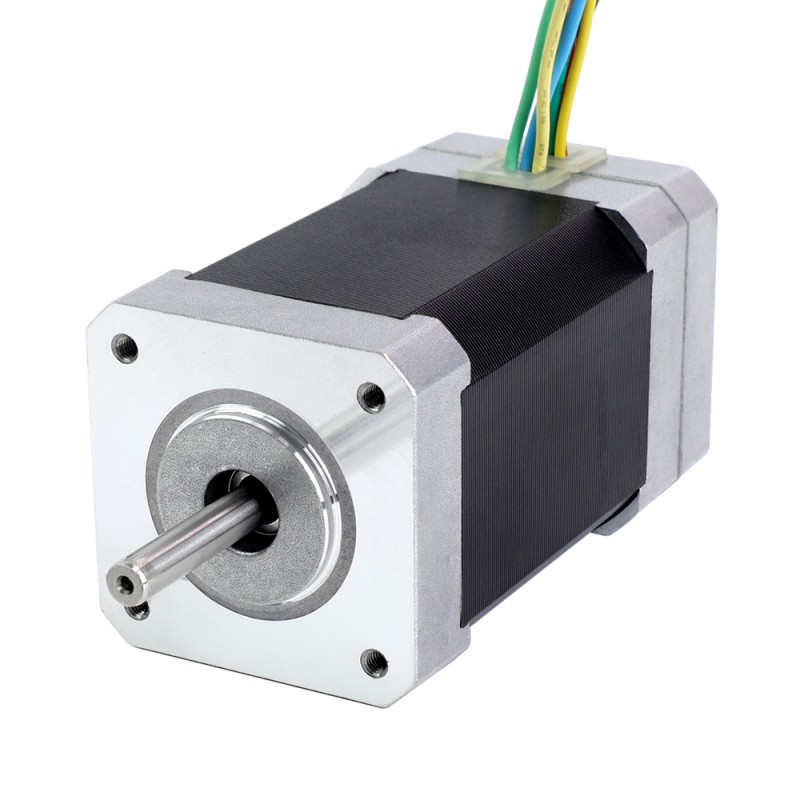

24V 3000RPM 0.24Nm 75W 4.80A 42x42x78mm Brushless DC Motor

0 reviews • Write a review

from

$35.22

10 or more $32.97

100 or more $30.98

Model: 42BSA78-24-01
Weight: 0.68kg

Available Options

Ships From

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

This is a 24V brushless DC motor with 3 phases and 8 poles. It offers a rated speed of 3000rpm and torque of 0.24Nm(33.99oz.in).
42BSA series brushless motors are high-performance motors with square body and larger torque that are suitable for textile machines, robotics, autobikes and other industrial applications.

Electrical Specification

Manufacturer Part Number: 42BSA78-24-01
Phase: 3
Poles: 8
Rated Voltage: 24V
Rated Torque: 0.24Nm(33.99oz.in)
Rated Power: 75W
Rated Speed: 3000±10%RPM
Rated Current: 4.80A
No-load Speed: 4000±10%RPM
Resistance/phase: 1.03±10%Ohms
Inductance/phase: 0.43±20%mH
BACK EMF: 4.41±5%V/krpm
Insulation Class: B 130°C[266°F]

Physical Specification

Frame Size: 42 x 42mm
Body Length: 78mm
Shaft Diameter: Φ5mm
Shaft Length: 24mm
Shaft Type: Round
Number of Leads: 8
Lead Length: 500mm
Sensor: Hall Sensor
Weight: 0.58kg

Connection

U	V	W	+5V	GND	A	B	C
Yellow	Green	Blue	Red	Black	Yellow	Green	Blue

The gearboxes suitable for this motor are EG17-G5, EG17-G10, EG17-G20, EG17-G50, EG17-G100.

Physical Specification
Output Shaft Type	O
Shaft Diameter(mm)	5
Shaft Length(mm)	24
Frame Size(mm)	Nema 17 (42 x 42)
With Gearbox	No
Body Length(mm)	78
IP Rating	20
Electrical Specification
Rated Voltage(V)	24
Rated Current(A)	4.80
Rated Speed(rpm)	3000
Rated Torque(Nm)	0.24
Rated Power(W)	75
No. of Phase	3
Product Type
Product Type	BLDC Motor
