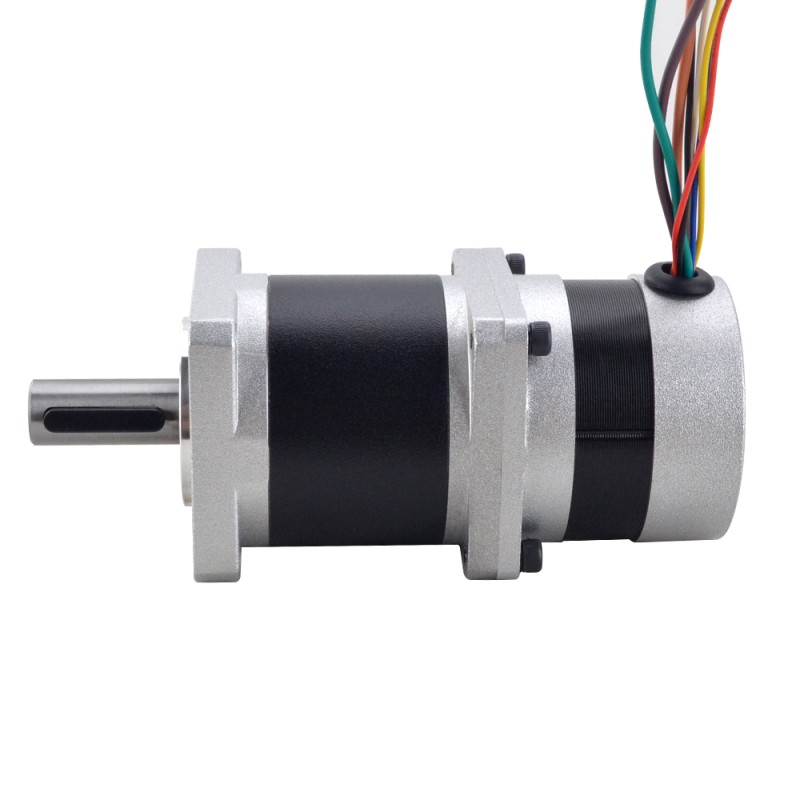

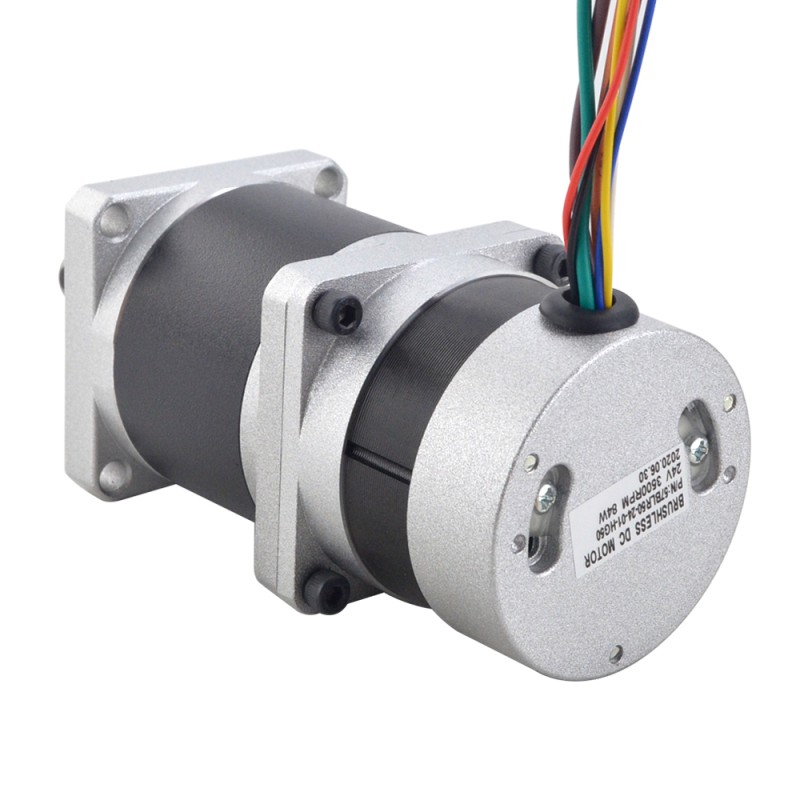

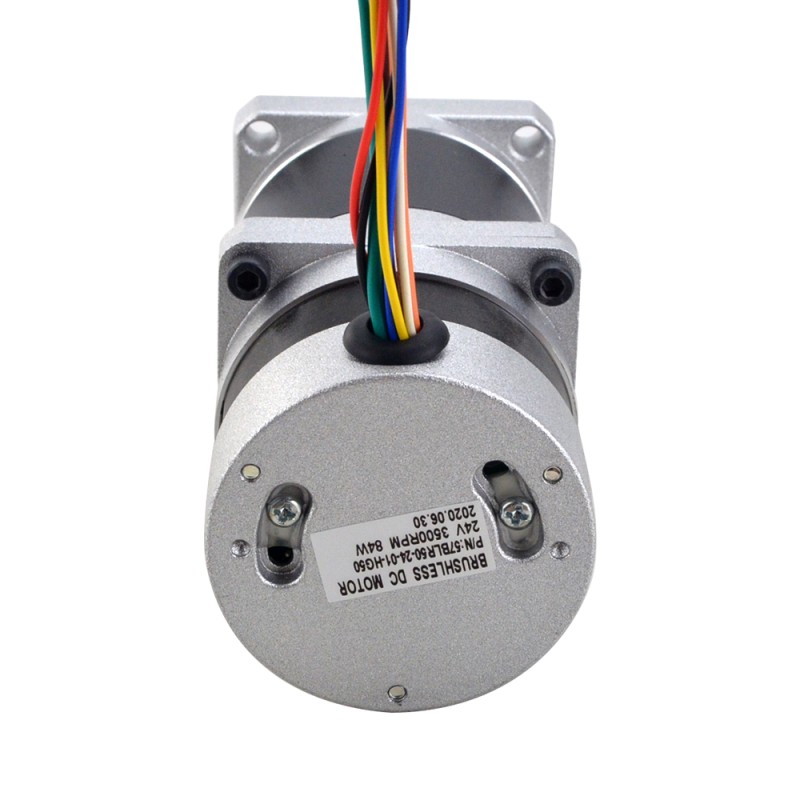

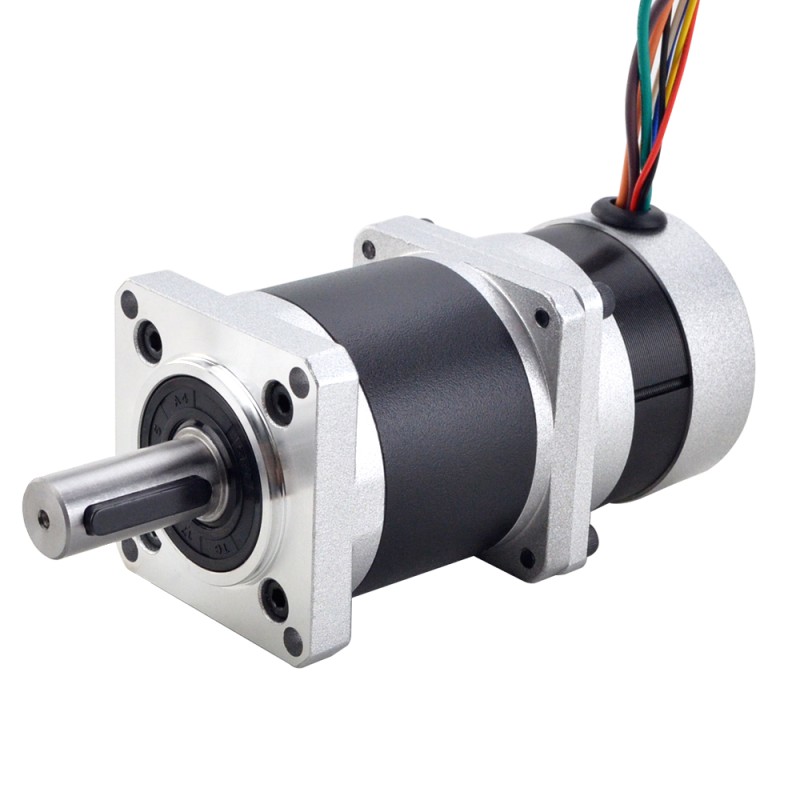

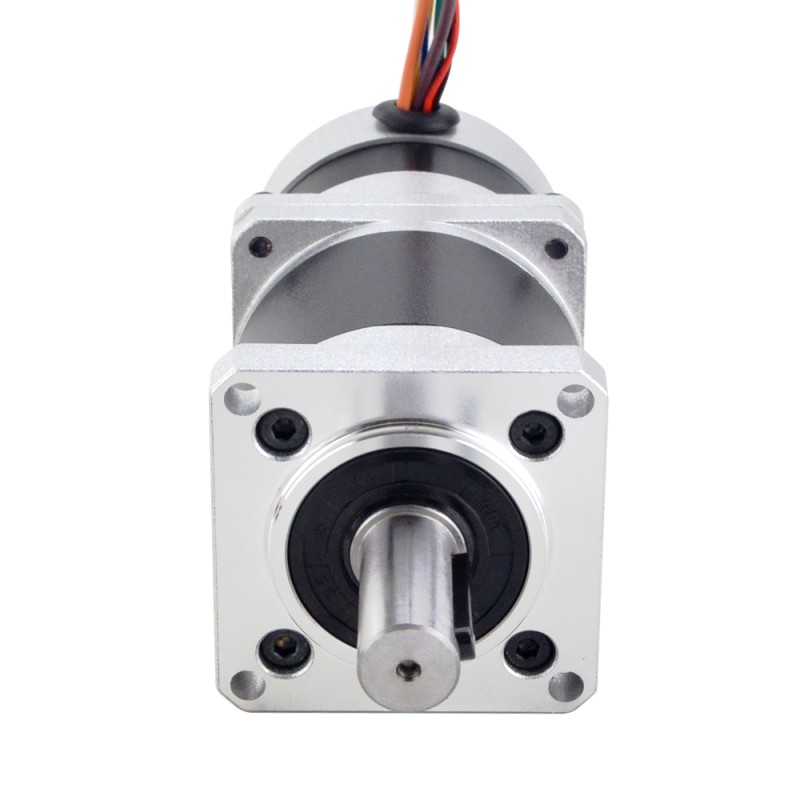

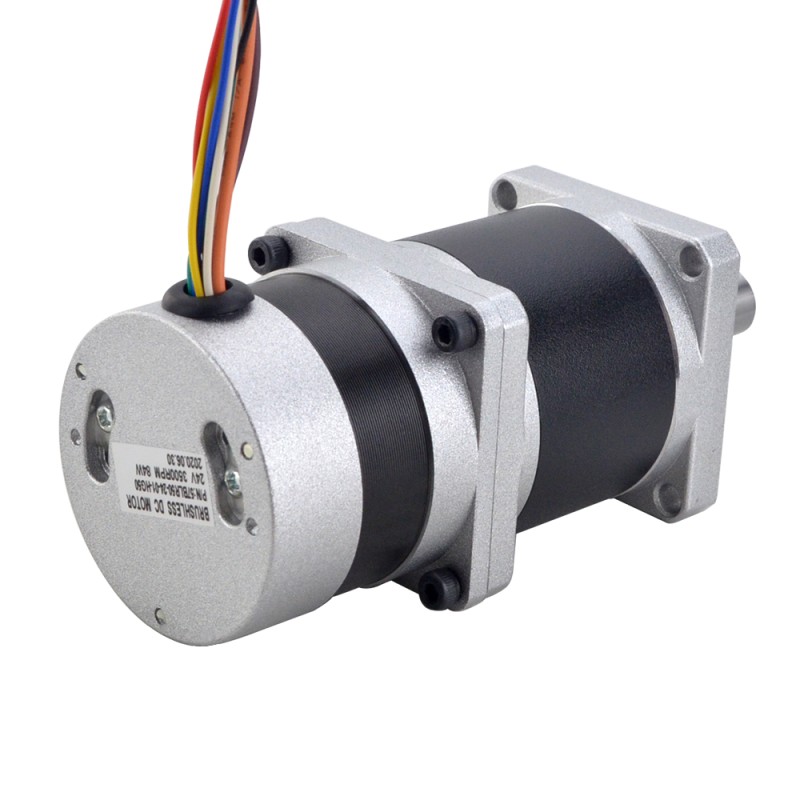

Name: 24V 84W 70RPM Geared Brushless DC Motor 8.63Nm(1221.4oz.in) 50:1 High Precision Gearbox
SKU: 57BLR50-24-01-HG50
Price: 102.26 USD
Availability: InStock

24V 84W 70RPM Geared Brushless DC Motor 8.63Nm(1221.4oz.in) 50:1 High Precision Gearbox

0 reviews • Write a review

from

$102.26

10 or more $93.83

100 or more $86.68

Model: 57BLR50-24-01-HG50
Weight: 1.40kg

Available Options

Ships From

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Electrical Specification

Manufacturer Part Number: 57BLR50-24-01-HG50
Phase: 3
Poles: 4
Rated Voltage: 24V
Rated Speed: 70±10%RPM
Rated Torque: 8.63Nm(1221.4oz.in)
Rated Current: 5.0±10%A
Rated Power: 84W
Insulation Class: B 130°C[266°F]
Insulation Resistance: 100MΩ Min @500VDC
Dielectric Strength Test: 500VAC for 1 Minute

Physical Specification

Frame Size: Φ57mm
Body Length: 49.1mm
Gearbox Length: 61.65mm
Shaft Diameter: Φ14mm
Shaft Length: 34mm
Key-way Length: 25mm
Number of Leads: 8
Lead Length: 300mm
Bearing Type: NMB Ball Bearing, C3
Weight: 1.22kg

Gearbox Specifications

Gearbox Type: Planetary
Gear Ratio: 50 : 1
Efficiency: 75%
Backlash at No-load: <=1.6deg
Max. Permissible Torque: 20Nm(2832.8oz.in)
Moment Permissible Torque: 40Nm(5665.6oz.in)
Max. Radial Load: 250N
Insulation Class: B
Noise: <=50dB
Ambient Temperature: 0 - 50℃

Connection

U	V	W	+5V	GND	A	B	C
Orange	Green	Brown	Red	Black	Yellow	White	Blue

Physical Specification
Output Shaft Type	Keyway
Shaft Diameter(mm)	14
Shaft Length(mm)	25
Frame Size(mm)	Nema 23 (57 x 57)
With Gearbox	Yes
Body Length(mm)	49.1
Gear Ratio	50
Gearbox Type	Planetary Gearbox
Inventory Method	Dedicated Inventory
IP Rating	20
Electrical Specification
Rated Voltage(V)	24
Rated Current(A)	5.00
Rated Speed(rpm)	70
Rated Torque(Nm)	8.63
Rated Power(W)	84
No. of Phase	3
Product Type
Product Type	Geared BLDC Motor
