24V 101W Round Geared Brushless DC Motor 6.90Nm(977.12oz.in) 27:1 Round Planetary Gearbox

24V 101W Round Geared Brushless DC Motor 6.90Nm(977.12oz.in) 27:1 Round Planetary Gearbox
24V 101W Round Geared Brushless DC Motor 6.90Nm(977.12oz.in) 27:1 Round Planetary Gearbox
24V 101W Round Geared Brushless DC Motor 6.90Nm(977.12oz.in) 27:1 Round Planetary Gearbox
24V 101W Round Geared Brushless DC Motor 6.90Nm(977.12oz.in) 27:1 Round Planetary Gearbox
24V 101W Round Geared Brushless DC Motor 6.90Nm(977.12oz.in) 27:1 Round Planetary Gearbox
24V 101W Round Geared Brushless DC Motor 6.90Nm(977.12oz.in) 27:1 Round Planetary Gearbox
New
24V 101W Round Geared Brushless DC Motor 6.90Nm(977.12oz.in) 27:1 Round Planetary Gearbox
24V 101W Round Geared Brushless DC Motor 6.90Nm(977.12oz.in) 27:1 Round Planetary Gearbox
24V 101W Round Geared Brushless DC Motor 6.90Nm(977.12oz.in) 27:1 Round Planetary Gearbox
24V 101W Round Geared Brushless DC Motor 6.90Nm(977.12oz.in) 27:1 Round Planetary Gearbox
24V 101W Round Geared Brushless DC Motor 6.90Nm(977.12oz.in) 27:1 Round Planetary Gearbox
24V 101W Round Geared Brushless DC Motor 6.90Nm(977.12oz.in) 27:1 Round Planetary Gearbox
24V 101W Round Geared Brushless DC Motor 6.90Nm(977.12oz.in) 27:1 Round Planetary Gearbox
0 reviews • Write a review
from
$83.95
10 or more $78.58
100 or more $73.86
  • Model: 57BYA74-24-01-PG27
  • Weight: 1.55kg

Available Options

Add to Cart
Buy Now Question?
Add to Wish List Compare this Product

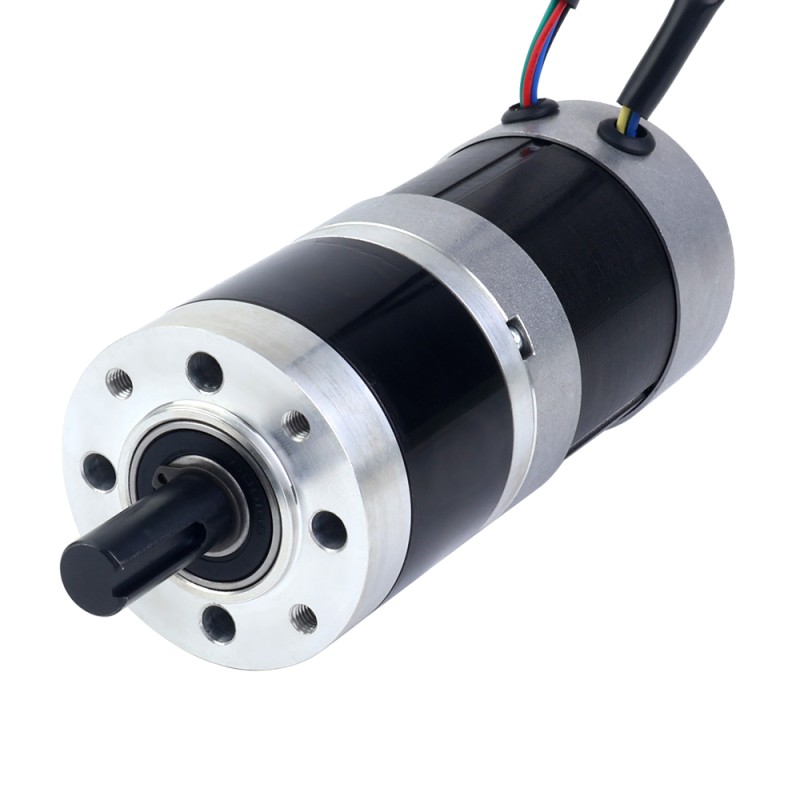

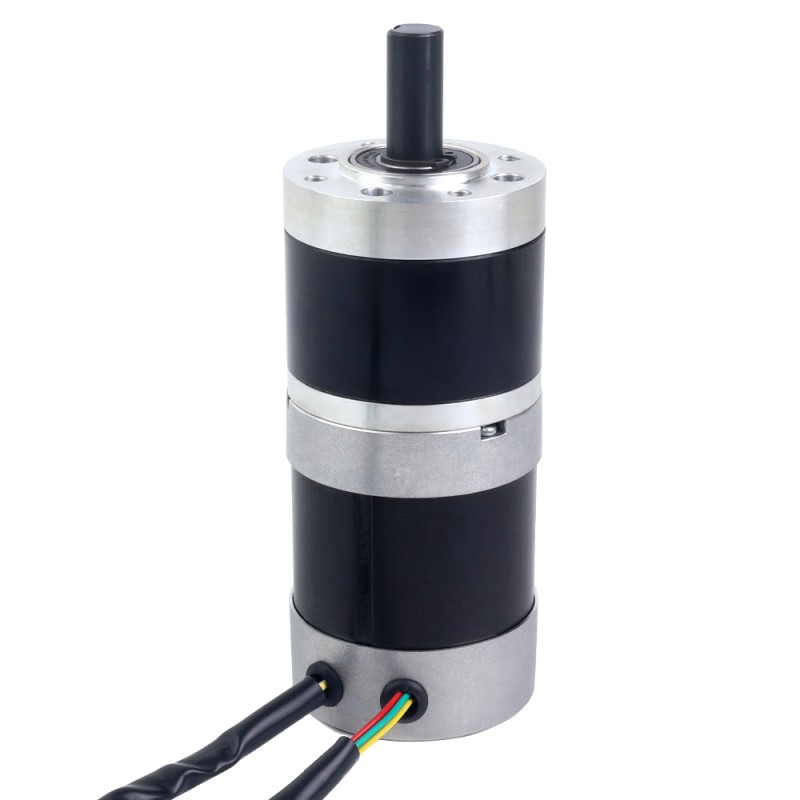

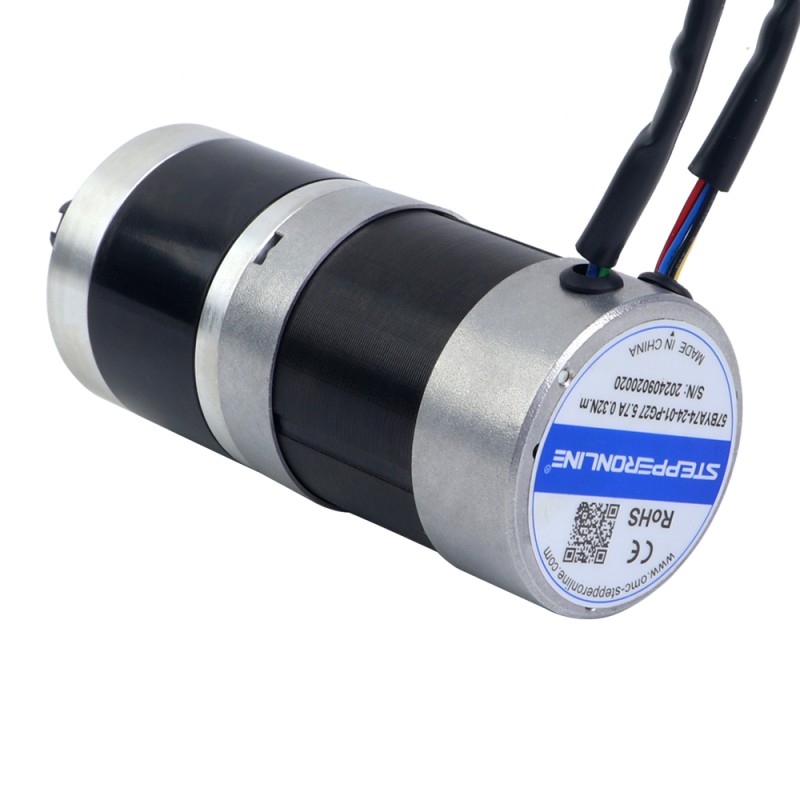

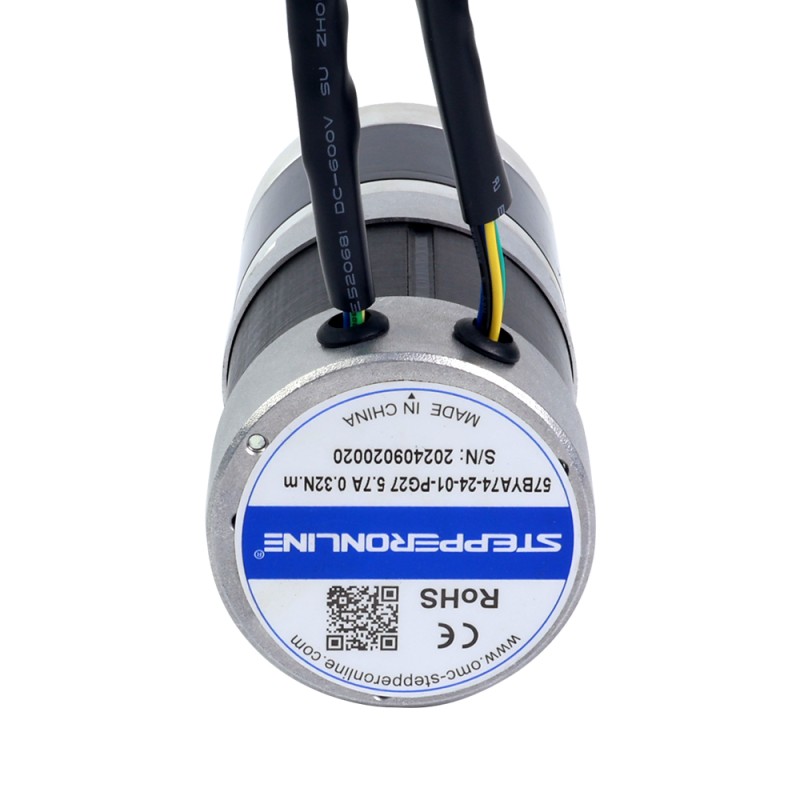

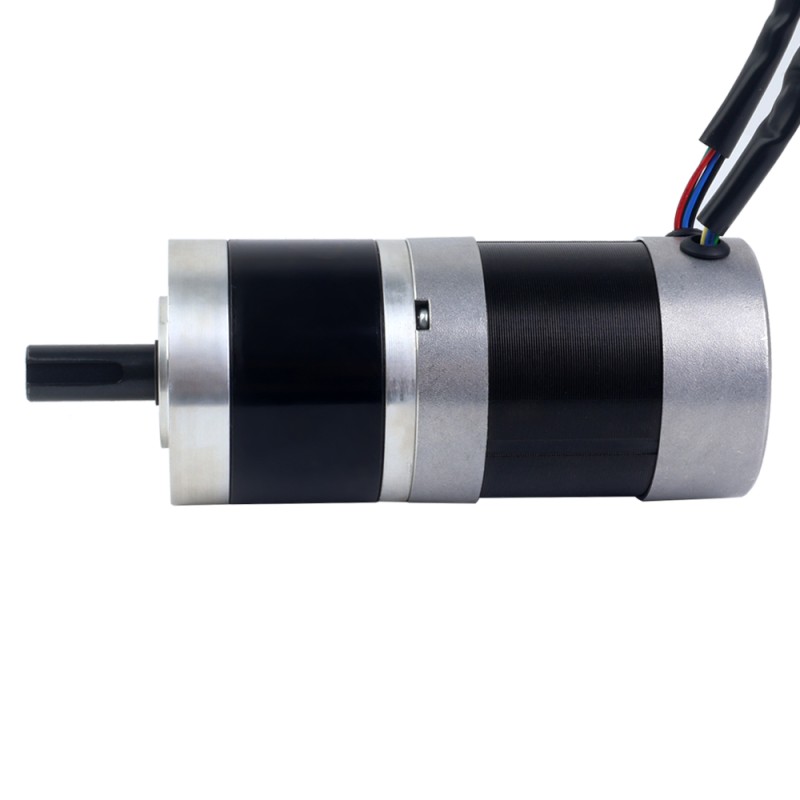

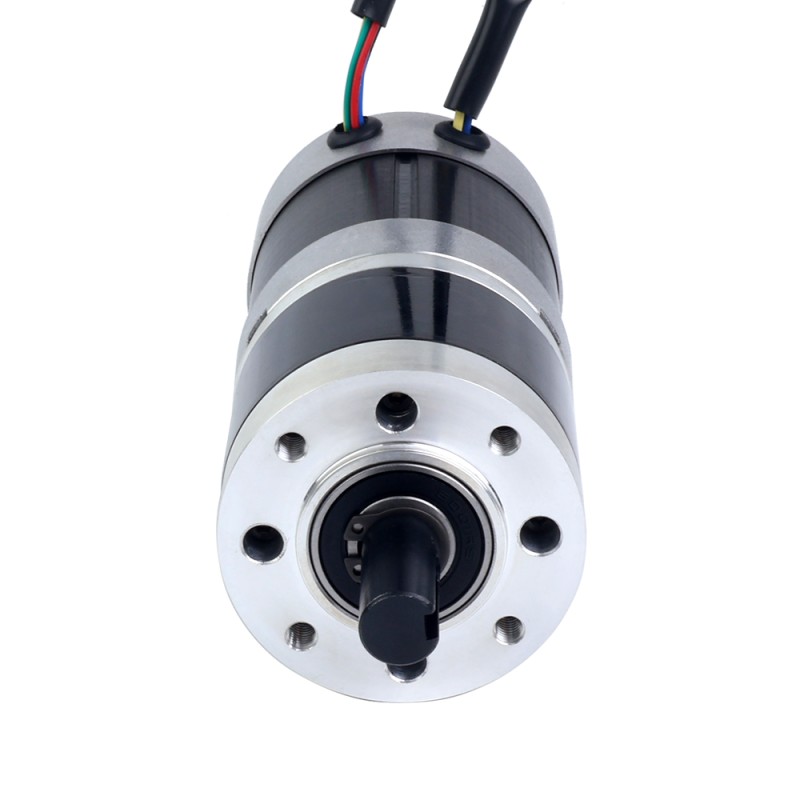

This is a 24V 101W brushless DC motor with a flange of Φ57mm. The built-in 27:1 round planetary gearbox delivers a rated torque of 6.90Nm(977.12oz.in). The overall cylindrical body is more suitable for installation in specific situations.
It is the perfect solution for motion control applications that require high torque, high precision, maximum efficiency and compact structure, such as medical equipment, robotics and other industrial applications, etc.

Electrical Specification

  • Manufacturer Part Number: 57BYA74-24-01-PG27
  • Phase: 3
  • Poles: 4
  • Rated Voltage: 24V
  • Rated Torque without Gearbox: 0.32Nm(45.32oz.in)
  • Rated Torque with Gearbox: 6.90Nm(977.12oz.in)
  • Rated Power: 101W
  • Rated Speed : 111rpm
  • Speed Without Gearbox: 3000rpm
  • Rated Current: 5.70A
  • Resistance/phase: 0.43±10%Ohms
  • Inductance/phase: 1.18±20%mH
  • BACK EMF: 4.8±5%V/krpm
  • Sensor: HALL
  • Insulation Class: B 130°C[266°F]

Physical Specification

  • Gearbox Type: Planetary Gearbox
  • Gear Ratio: 27:1
  • Frame Size: Φ57mm
  • Body Length: 122.5mm
  • Shaft Diameter: Φ12mm
  • Shaft Length: 30mm
  • Shaft Type: Keyway
  • Number of Leads: 8
  • Lead Length: 500mm
  • Weight: 1.35kg

Connection

U
V
W
+5V
GND
A
B
C
Yellow
Green
Blue
Red
Black
Yellow
Green
Blue
Physical Specification
Output Shaft Type Keyway
Shaft Diameter(mm) 12
Shaft Length(mm) 30
Frame Size(mm) 57 Round
With Gearbox Yes
Body Length(mm) 122.5
Gear Ratio 26.8
Gearbox Shape Round
Gearbox Type Planetary Gearbox
Inventory Method Dedicated Inventory
Electrical Specification
Rated Voltage(V) 24
Rated Current(A) 5.70
Rated Speed(rpm) 111
Rated Torque(Nm) 0.32
Rated Power(W) 101
No. of Phase 3
Product Type
Product Type Geared BLDC Motor
