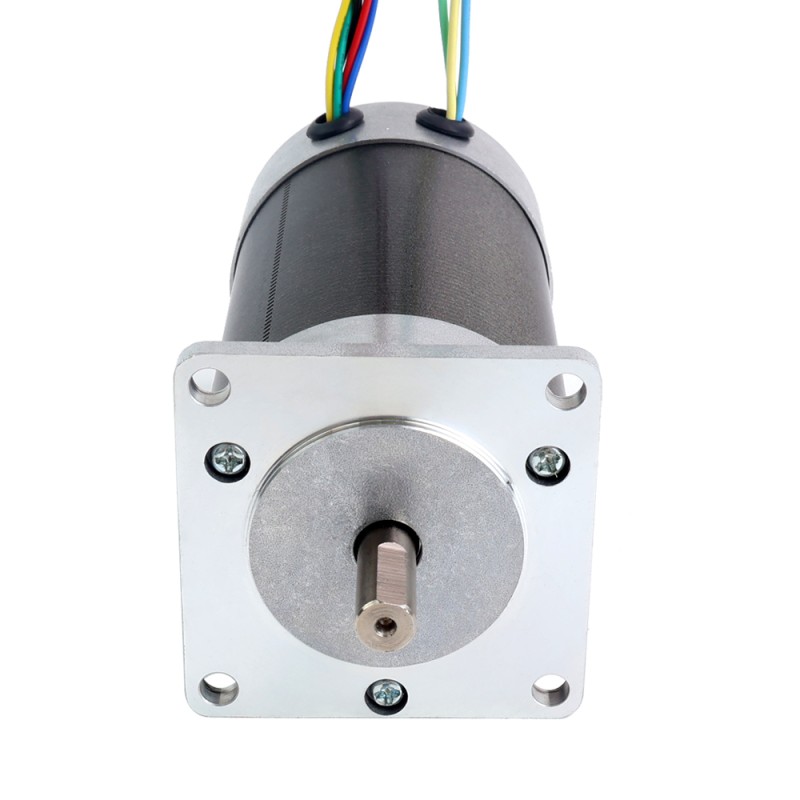

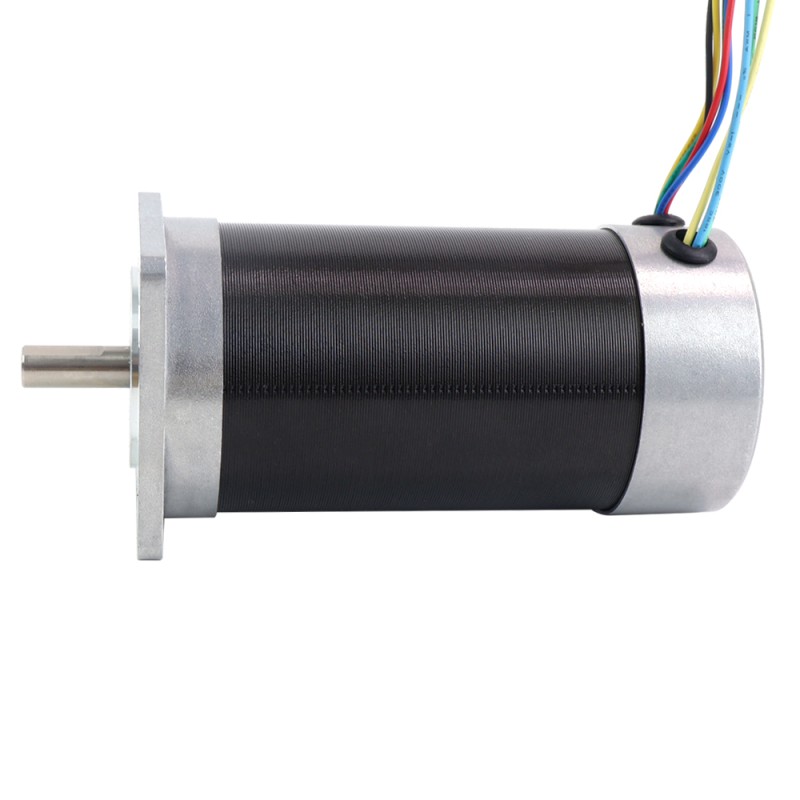

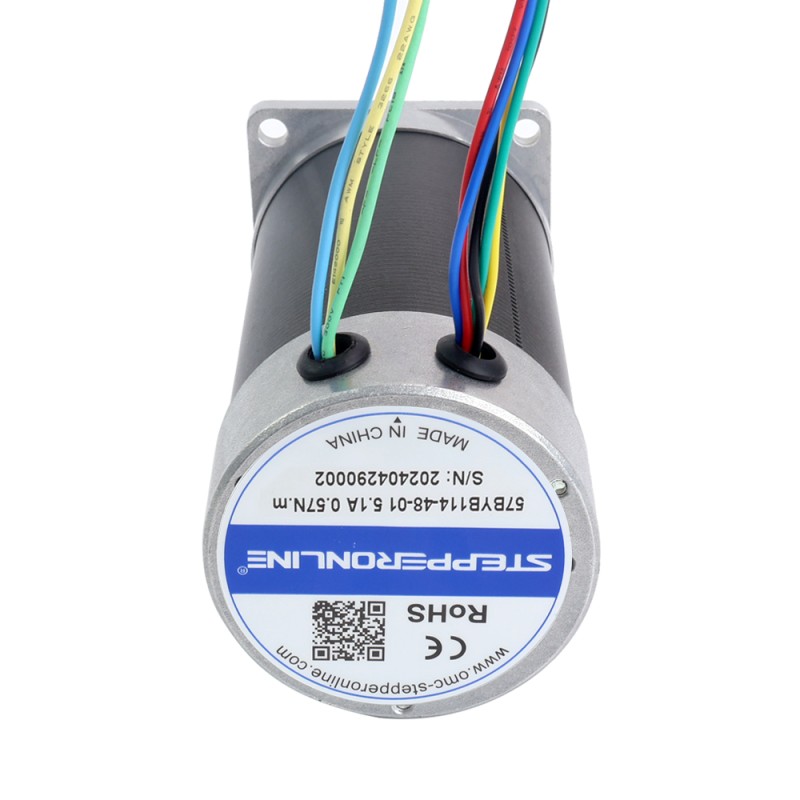

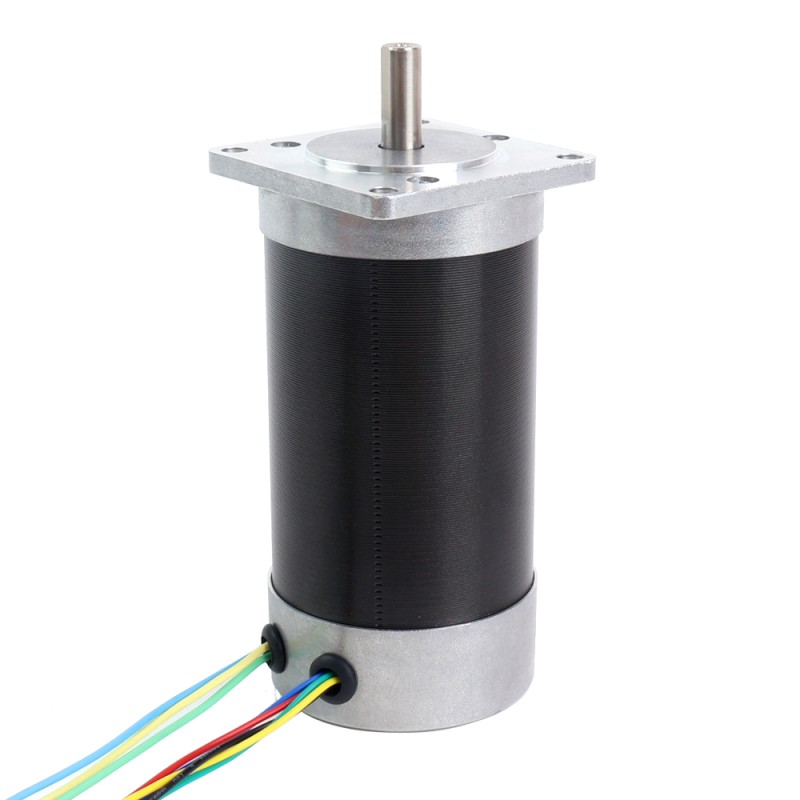

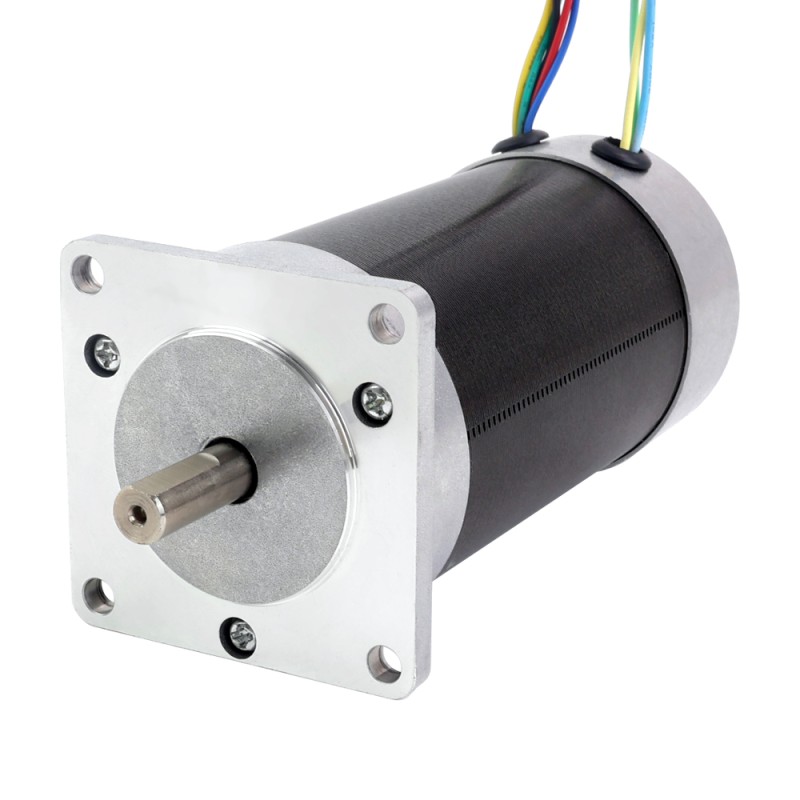

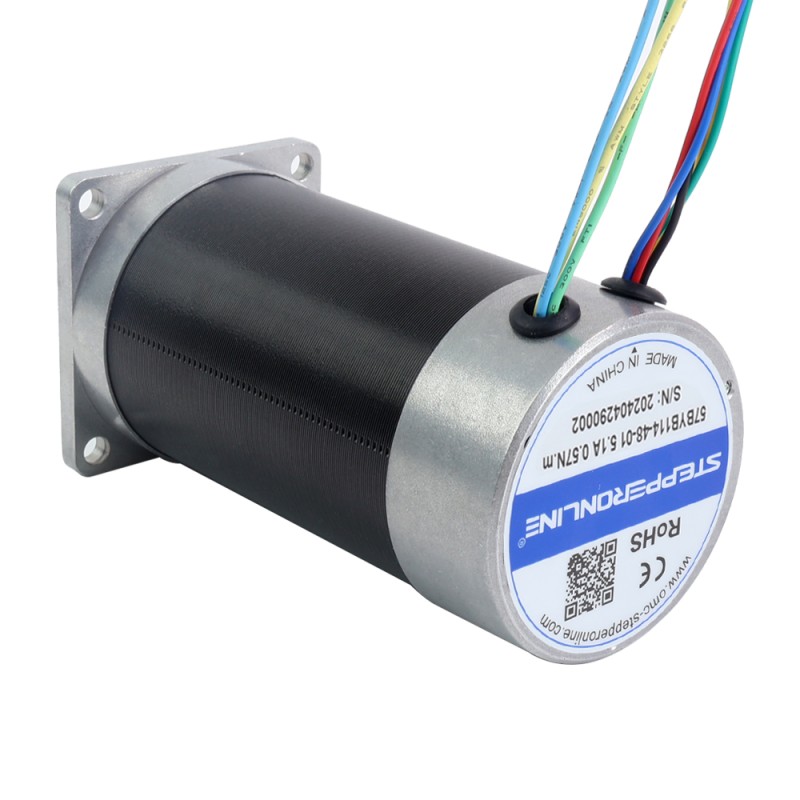

48V 3000RPM 0.57Nm 179W 5.10A 57x57x113.5mm Brushless DC Motor

0 reviews • Write a review

from

$45.50

10 or more $42.59

100 or more $40.03

Model: 57BYB114-48-01
Weight: 1.29kg

Available Options

Ships From

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

This is a 48V brushless DC motor with 3 phases and 4 poles. It offers a rated speed of 3000rpm and torque of 0.57Nm(80.72oz.in).
The 57BYB series brushless motors are generally less expensive motors with a round housing but a standard Nema mounting surface that is compatible with the EG23 and RYG23 series gearboxes. They are suitable for applications requiring low torque and high speed, such as air pumps, cooling fans, air pumps and other household appliances, etc.

Electrical Specification

Manufacturer Part Number: 57BYB114-48-01
Phase: 3
Poles: 4
Rated Voltage: 48V
Rated Torque: 0.57Nm(80.72oz.in)
Rated Power: 179W
Rated Speed: 3000±10%RPM
Rated Current: 5.10A
No-load Speed: 4100±10%RPM
Resistance/phase: 1.18±10%Ohms
Inductance/phase: 3.04±20%mH
BACK EMF: 8.3±5%V/krpm
Insulation Class: B 130°C[266°F]

Physical Specification

Frame Size: 57 x 57mm
Body Length: 113.5mm
Shaft Diameter: Φ8mm
Shaft Length: 21mm
Shaft Type: D-cut
Number of Leads: 8
Lead Length: 500mm
Sensor: Hall Sensor
Weight: 1.19kg

Connection

U	V	W	+5V	GND	A	B	C
Yellow	Green	Blue	Red	Black	Yellow	Green	Blue

The gearboxes suitable for this motor are EG23-G5-D8, EG23-G10-D8, EG23-G20-D8, EG23-G50-D8.

Physical Specification
Output Shaft Type	D
Shaft Diameter(mm)	8
Shaft Length(mm)	21
Frame Size(mm)	Nema 23 (57 x 57)
With Gearbox	No
Body Length(mm)	113.5
Inventory Method	Dedicated Inventory
IP Rating	20
Electrical Specification
Rated Voltage(V)	48
Rated Current(A)	5.1
Rated Speed(rpm)	3000
Rated Torque(Nm)	0.57
Rated Power(W)	179
No. of Phase	3
Product Type
Product Type	BLDC Motor
