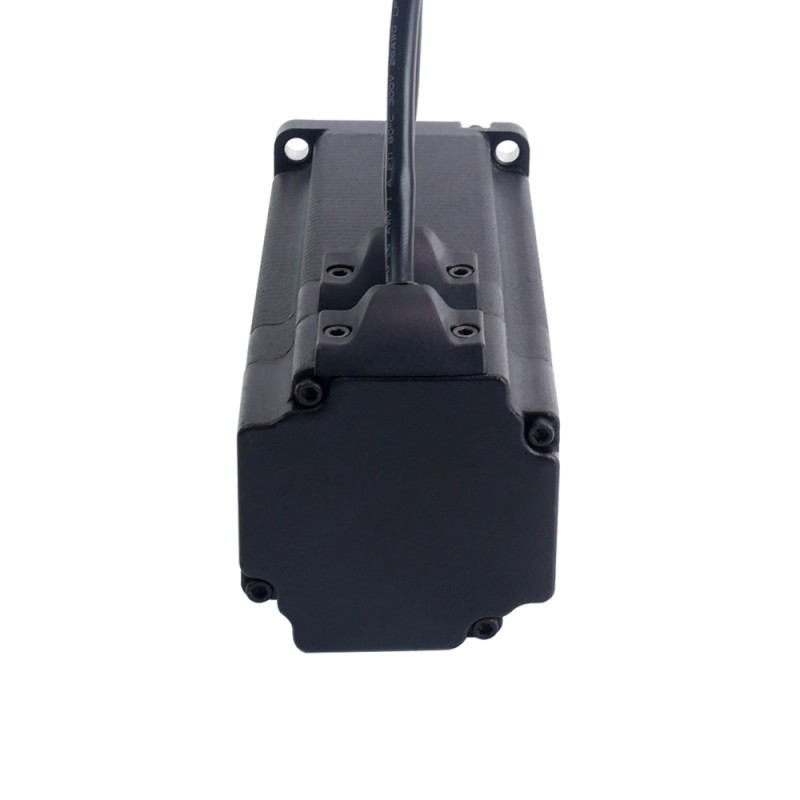

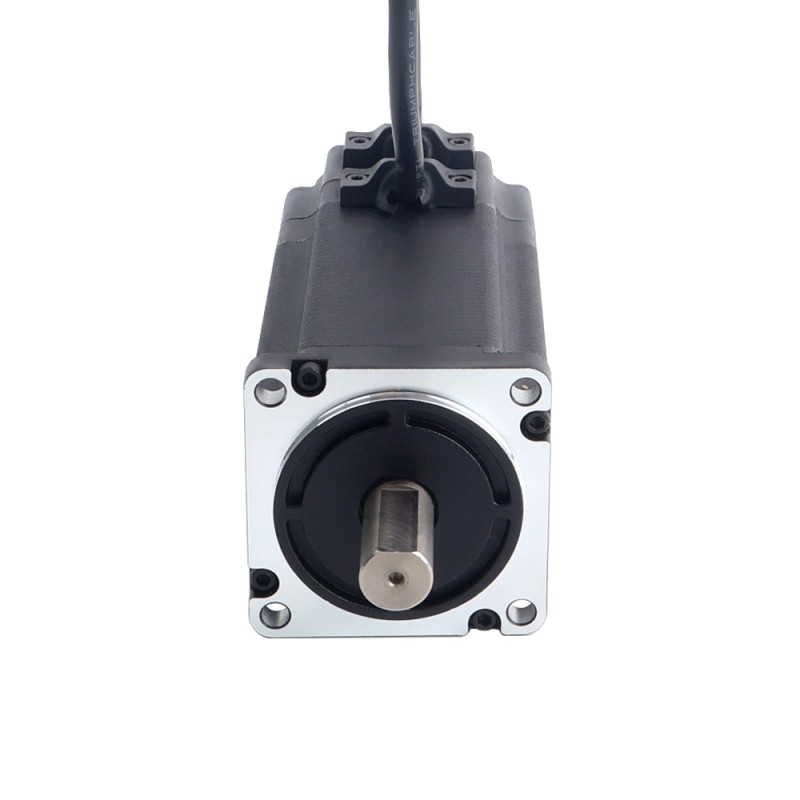

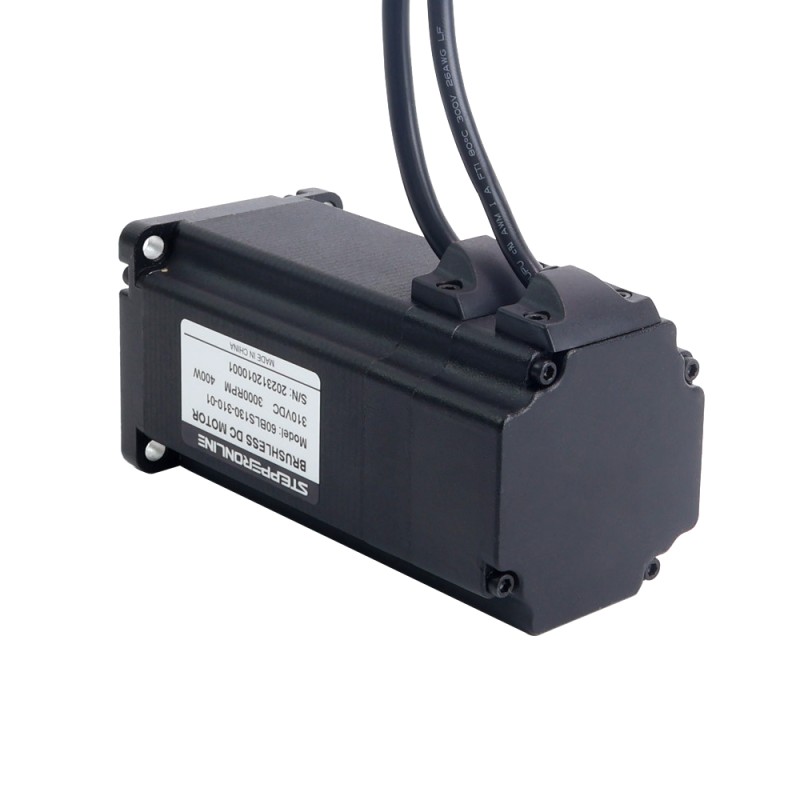

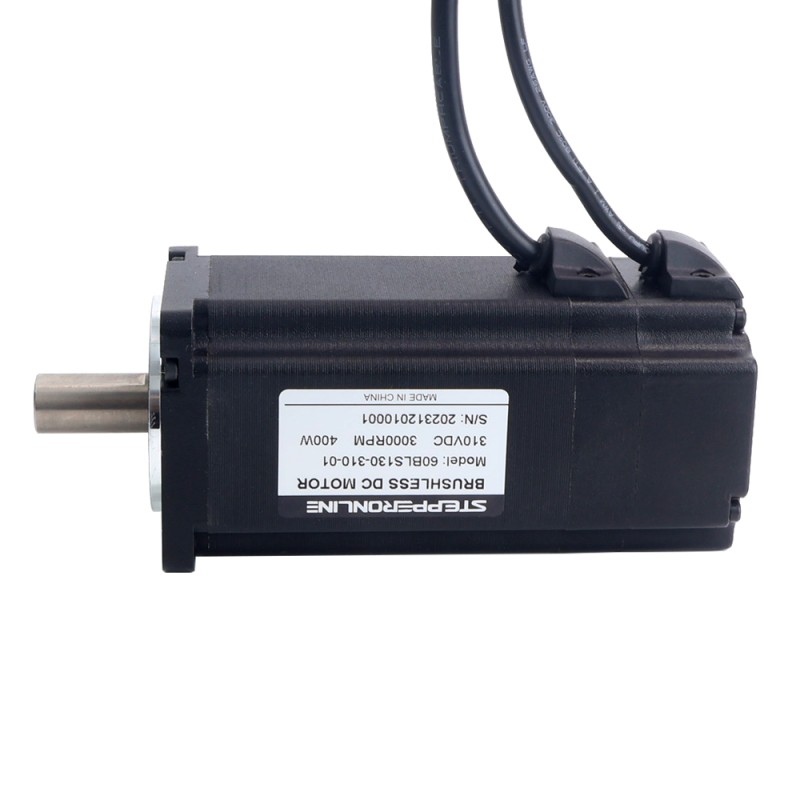

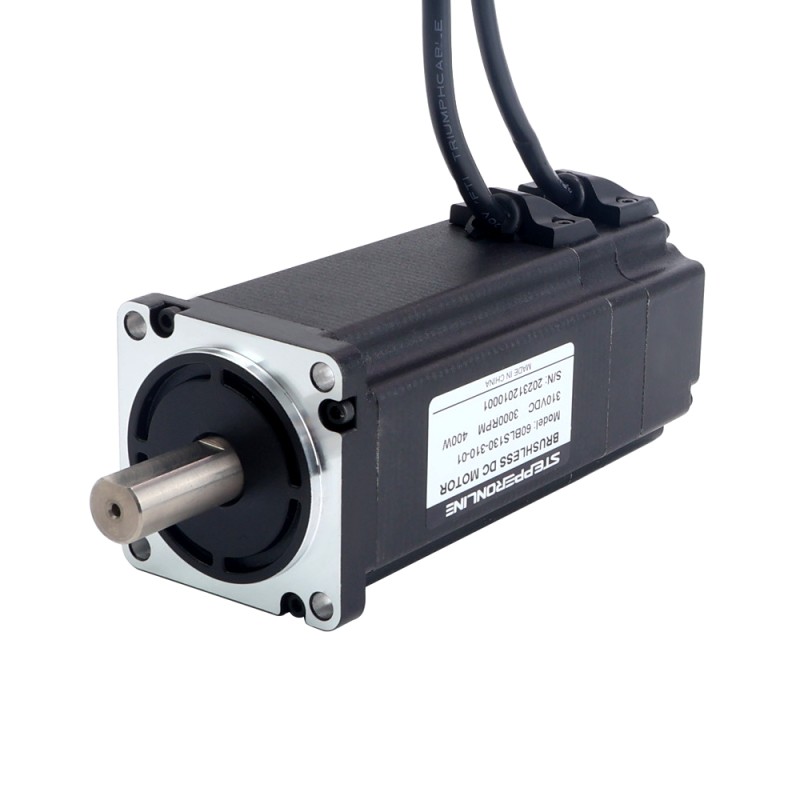

310V 3000RPM 1.27Nm 400W 1.8A Square 60x60x131mm Brushless DC Motor

0 reviews • Write a review

from

$88.07

10 or more $82.42

100 or more $77.47

Model: 60BLS130-310-01
Weight: 2.19kg

Available Options

Ships From

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

This high-voltage brushless DC motor is made of high-quality materials and has a sturdy construction. High-voltage version of brushless DC delivers efficient performance and consistent torque output.

Electrical Specification

Manufacturer Part Number: 60BLS130-310-01
Phase: 3
Poles: 8
Rated Power: 400W
Rated Voltage: 310VDC
Rated Speed: 3000±10%RPM
Rated Current: 1.8±10%A
Rated Torque: 1.27Nm(179.85oz.in)
Insulation Class: B 130°C[266°F]
Resistance/phase: 18.87±10%Ohms
Inductance/phase: 25.6±20%mH

Physical Specification

Frame Size: 60 x 60mm
Body Length: 131mm
Shaft Diameter: Φ14mm
Shaft Length: 30mm
D-cut Length: 25mm
Number of Leads: 9
Lead Length: 1000mm
Weight: 1.99kg

Connection

Motor				Hall
U	V	W	PE	+5V	GND	Hall A	Hall B	Hall C
Yellow	Green	Blue	Yellow/Green	Red	Black	Yellow	Green	Blue

Physical Specification
Output Shaft Type	D
Shaft Diameter(mm)	14
Shaft Length(mm)	30
Frame Size(mm)	60 x 60
With Gearbox	No
Body Length(mm)	131
Inventory Method	Shared Inventory
IP Rating	20
Electrical Specification
Rated Voltage(V)	310
Rated Current(A)	1.8
Rated Speed(rpm)	3000
Rated Torque(Nm)	1.27
Rated Power(W)	400
No. of Phase	3
Product Type
Product Type	BLDC Motor
